DESIGNED FOR compact EQUIPMENT
Skid Steers
Bucket tractor
Mid size excavators
Compact loaders
GENERAL DESCRIPTION
The 78 STATIC Screener is specifically designed for handling aggregate materials, making it the perfect solution for tough jobs that demand durability and precision. Built with the ruggedness of a traditional Grizzly screener but enhanced with the precision of mesh screening, this screener ensures that the final product meets your exact specifications.
YOU CAN SCREEN
- Wood Mulch
- Decorative Stone
- Road Gravel
- Erosion Control Rock
- Ground Asphalt
- Crushed Concrete
SCREENER FEATURES
TILTING SCREEN DECK
- The TILTING SCREEN DECK in the 78 STATIC is the same advanced system used in our 78VFRB model. This feature allows you to have precise control over the flow of material on the screen deck. By enabling direct contact between your bucket and the screen deck, you can easily move and manage material while keeping the screening process in motion. This system ensures a smooth and efficient operation, even when dealing with challenging materials.

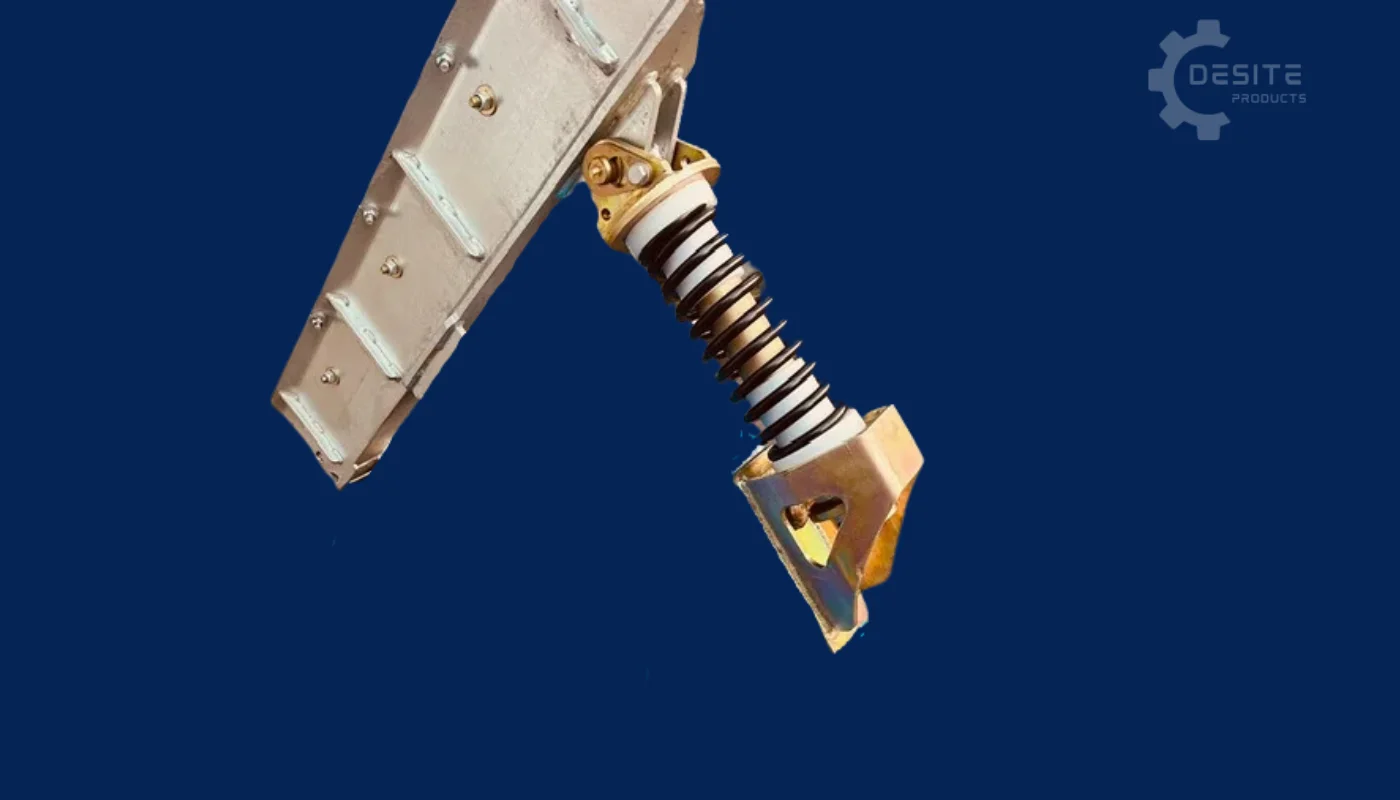

SPRING SUSPENSION SYSTEM
- The Spring Suspension System in the 78 STATIC is designed to facilitate the action and reaction of the screen deck, allowing it to move in a harmonic motion that efficiently drives material across the screen. This movement ensures that your screening process is both precise and fast, unlike traditional Grizzly screeners, where rocks or other debris can often become stuck. The Spring Suspension System helps prevent clogging, making your operation smoother and more reliable.
SLG 78 STATIC
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 95 inches |
| Machine Height | 90 inches |
| Machine Depth | 74 inches |
| SCREEN DECK | |
| Screen Deck Width | 80 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 29 sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| WEIGHT | |
| Total Weight with riser box | 2250 lbs |
| Total Weight without riser box | 1750 lbs |

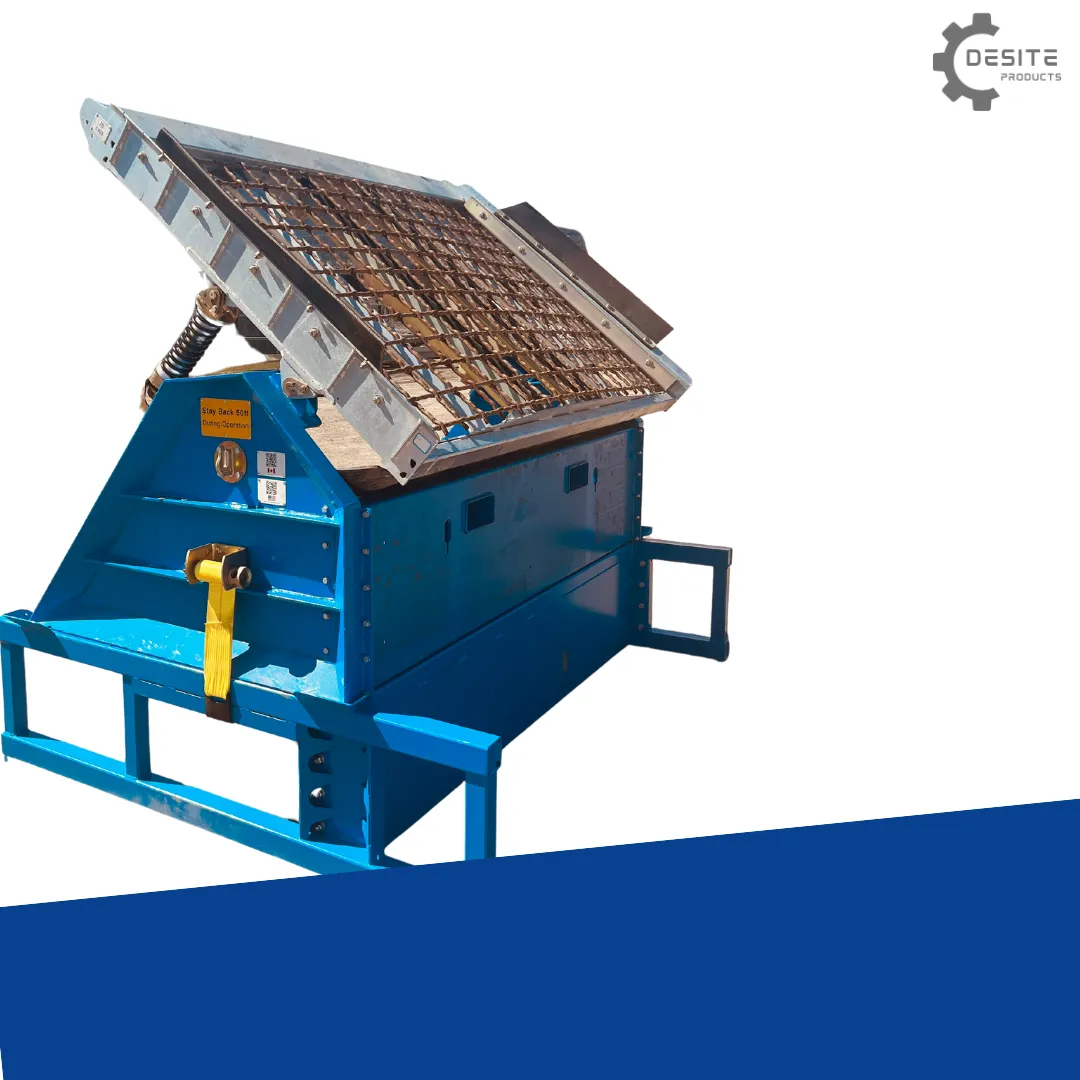

DeSite WARRANTY POLICY
3 year structural warranty.
read more
We provide all parts at no cost to the customer during the warranty period.
Customer is responsible for installing the part and covering the shipping cost.
Customers are responsible for inspection before and after use.
We do not warrant against abuse or lack of maintenance.
DESITE WARRANTY POLICY
BUY WITH CONFIDENCE
ABOUT MESH
Square
- We offer a wide range of mesh that are quick and easily changed.The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker. We offer both square and elongated mesh pattern in a double lock crimp weave. Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.
MESH GUIDE
Square
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
