SLG – 78VFRB
With flow control
Hourly Production 15 to 40 yards per hour
MSRP
$11,050 USD
$10,900 CAD
With Riser Box
MSRP
$9,750 USD
$9,950 CAD
With Out Riser Box
WE HAVE INVENTORY READY TO SHIP
SCREENER FEATURES
FEED DEFLECTOR SYSTEM
- The Feed Deflection System that funnels material to the top of the screen deck to begin the screening process.
- Designed to control and direct the flow of material being screened.
- The feed deflector on the 78VF allows the operator to feed the screener faster and more aggressively.
- It mounts into quick disconnect lugs that allow the feeder to tip forward allowing oversize material to pass over the screen deck and into the overs pile.
- The feeder can be completely removed turning the screener into a standard deck screen like all others.
TILTING SCREEN DECK
- DeSite SLG screeners can tilt from 45 degrees for high moisture materials, all the way back to 30 degrees when screening dry sand, gravels, and low moisture soils.
- It has ability to manipulate the deck slope during the screening process.
- Only DeSite builds their screen deck so rugged that you are able to make contact with your bucket and the screen deck to manipulate the degree of slope while feeding the screener.
POWER BOX
- Starting at the source you will find our heavy duty 25ft (10 gauge) electrical cord that connects to our watertight power box.
- Inside the power box you will find a bus bar and starting capacitor that stores the energy necessary to start the vibratory pack rotating.
- The vibratory pack will spin up the dual eccentric armature to 3600 rpm, supplying a centrifugal force of 560 ft/ lbs.
- Once up to speed the vibratory pack transfers the vibration through the vibratory motor mounting plate, through the vertical tubes, and then across our crowned and side tensioned screen mesh.
- The SLG 78VF can be powered up with standard 120 volt land power as long as the distance from the power source is under 75ft and you are using a heavy duty 10 gauge electrical cord.
CANTILEVERED SPRING SUSPENSION SYSTEM
- Our Cantilevered Coil Over Spring Suspension System gives the operator the freedom to choose the deck slope that best suits the material being screened.
- Our simple and rugged suspension designed to cantilever which mean that when the top of the screen deck is pushed down the bottom works in the opposite direction.
- Our suspension system is basically maintenance free with only two grease points that need servicing each shift.
- Using leaf springs, Z springs, and UHMW bushing to separate the suspension tubes from the coils no lubrication is needed.
DeSite SLG 78VF vibratory screener is our midsize portable vibratory screener Designed to be fed.
Compact loaders
Skid Steers
Mid size excavators
Bucket tractor
YOU CAN SCREEN
- Sand
- Topsoil
- Compost
- Wood Mulch
- Pea Stone
- Septic Rock
- Road Gravel
- Landscape Stone
- Ground Asphalt
- Crushed Concrete
- Erosion Control Rock
- Traction Sand
SCREENER ACCESSORIES
BUCKET TRANSPORT LUGS
- For moving the SLG 78 around onsite our Bucket Transport Lugs save time and the need for having pallet forks onsite.
- Move the screener efficiently with your bucket.
- No hitch, no wheels, no wiring, no wasted time digging.
MSRP
$275 USD
$371.25 CAD
IN STOCK
RISER BOX
- Designed for buckets that exceed our 78″ threshold, maxing out at 82″.
- More product means higher efficacy.
- Stabalizes Movement.
- Galvanized to protect metals surfaces.
MSRP
$1,300 USD
$1,950 CAD
IN STOCK
MACHINE SPECIFICATIONS
| MACHINE DIMENSIONS | |
|---|---|
| Machine Width | 96 inches |
| Machine Height | 104 inches |
| Machine Depth | 72 inches |
| SCREEN DECK | |
| Screen Deck Width | 80 inches |
| Screen Deck Length | 52 inches |
| Screen Deck Surface area | 29sq/ft |
| Screen Deck Tilt Angle | 45 to 30 Degrees |
| VIBRATORY SYSTEM | |
| Vibratory Style System | Dual Eccentric Armature |
| Eccentric Rotation Speed | 3600 rpm |
| Amperage Draw | 10 each on start up with 5 Amps Amp draw per motor at 3600rpm |
| Eccentric Force rotation | 760 lbs per/revolution |
| ELECTRICAL POWER SUPPLY | |
| North America | 110 Volt ( 60 Hertz ) |
| Europe | 220 Volt ( 50 Hertz ) |
| South America | 110 Volt ( 60 Hertz ) |
| WEIGHT | |
| Total Weight with riser box | 2500 lbs |
| Total Weight without riser box | 2000 lbs |
Watch the full video of this machine in action
Buy With Confidence
3 year structural warranty.
1 year electrical components warranty.
ABOUT MESH

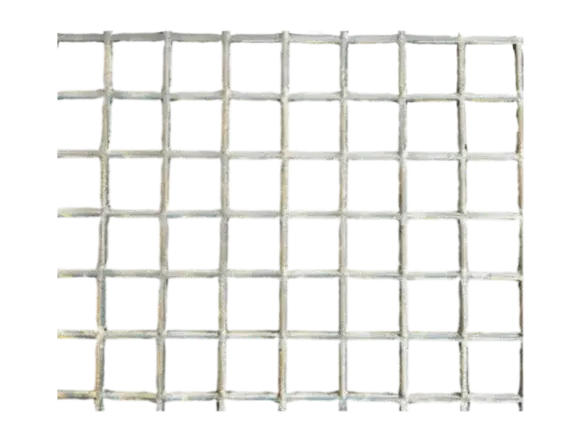

SQUARE
- We offer a wide range of mesh that are quick and easily changed.
- The ability to install large and small high quality mesh makes DeSite SLG Screeners a time saver and money maker.
- We offer both square and elongated mesh pattern in a double lock crimp weave.
- Our double lock weave puts two crimps in each wire as they intersect, This creates a strong weave and a stronger, more stable mesh.

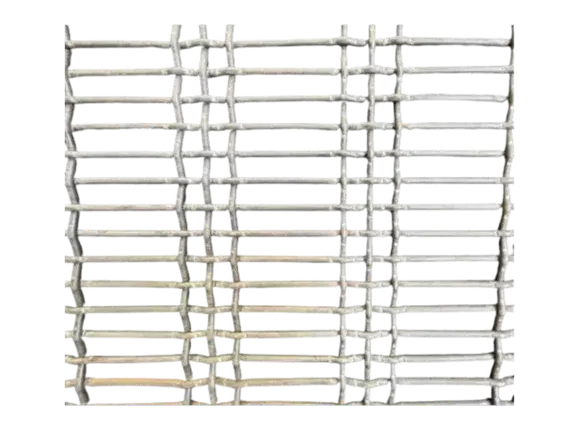

ELONGATED
- Our elongated pattern mesh is what we call a triple chute weave where a group of three wires intersect the main with wires.
- A space of four inches has full unobstructed opening before the next three wires intersect the mesh again.
- Our elongated pattern meshes are designed to handle higher moisture material when screening is more challenging.
- Hourly production are always considerably higher when elongated pattern mesh in in use.
Screen mesh Recommendation Chart
- Topsoil is in demand and profitable. Depending upon the customer and their needs some want it very fine while other are more price conscious and want commercial grade topsoil.
SQUARE
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 5/32" x 5/32" | Square | 1/16" |
| 1/4" x 1/4" | Square | 1/8" |
| 3/8" x 3/8" | Square | 1/4" |
| 1/2" x 1/2" | Square | 3/8" |
| 1" x 1" | Square | 3/4" |
| 2" x 2" | Square | 1-1/2" |
| 3" x 3" | Square | 2" |
| 4" x 4" | Square | 3" |
ELONGATED
| Mesh Size | Pattern | Product Size |
|---|---|---|
| 3/8" x 4" | Elongated | 1/4" to 5/16" |
| 1/2" x 4" | Elongated | 3/8" to 7/16" |
| 3/4" x 4" | Elongated | 1/2" to 9/16" |
| 1" x 4" | Elongated | 3/4" to 7/8" |
